Lux CF SLX 9 TEAM

-24%

Kitted out for maximum speed, performance, and efficiency – this is the bike that Mathieu van der Poel has been dominating the XC scene on for years. Get it. Race. Win. Repeat.

Front Fork Travel: 100 mm
Weight: 10.22 kg

Reviews (8)

Colour: Team Alpecin-Fenix

Members only product.

Select frame size

What’s my size?
Find out in 3 steps

Sold out

Members only product.

Sold out

Highlights Lux CF SLX 9 TEAM

Key features

Instant Speed

The Lux is one of the fastest, most efficient machines to be found. The only way to make it faster? Add a handlebar-mounted, suspension lockout. And that’s precisely what we did on all our SLX models.

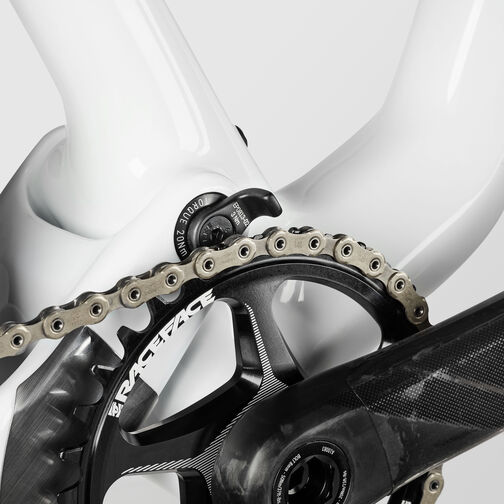

No Dropped Chains

A dropped chain can mean a lost race, which is why we equip the Lux with the lightest chain guide available. Our minimalist guide helps keep your chain in place no matter how rough the course.

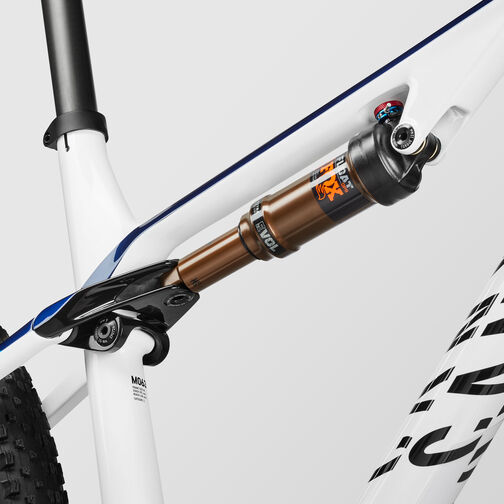

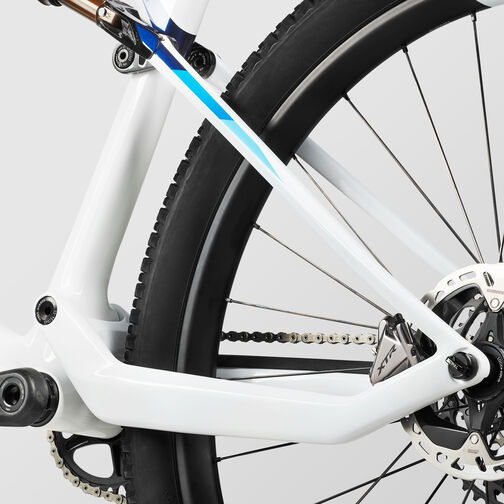

Rear Suspension Made Light

We’ve equipped the Lux with a lightweight flex pivot that cuts weight by eliminating conventional bearing hardware. You get smooth suspension and no unnecessary weight.

Components

Content is loading

Frame

Frame
- Canyon Lux CF SLX
- A true podium threat, the Lux CF SLX has been our go-to full suspension XC bike for Canyon Factory racers including Mathieu van der Poel and Emily Batty.
- Material: Carbon (CF)
- Weight: 1,230 g
Rear Shock
- FOX Float DPS Factory Remot
Suspension Fork
- FOX 32 Step-Cast Factory Remote
- Axle dimension: 15x110 mm
- Stanchion Diameter: 32 mm
- Travel: 100 mm
- Fork steer tube diameter: 1 1/8" - 1,5"
- Weight: 1,412 g

Drivetrain

Rear Derailleur
- Shimano XTR, 12-speed
- Cage length: long
- Weight: 243 g
Shift Lever
- Shimano XTR, 12-speed
- Weight: 128 g
Cassette
- Shimano XTR CS-M9101 12s 10-51
- Number of sprockets: 12
- Range: 10-51 12S
Crank
- Race Face Next SL G5 Carbon 34T
- Number of chainrings: 1
Bottom bracket
- Race Face Pressfit Cinch
- Bottom bracket standard: PF 92
- Weight: 69 g
Chain
- Shimano XTR

Brakes

Disc Brake
- Shimano XTR M9100
Disc Brake
- Shimano XTR M9110 Flatmount
Brake Rotor
- Shimano RT-MT900, 180mm
- Size: 180 mm
- Weight: 146 g
Brake Rotor
- Shimano RT-MT900
- Size: 160 mm
- Weight: 122 g

Wheels

Front Wheel
- DT Swiss XRC 1200 Spline
- Axle dimension: 15x110 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 679 g
Rear Wheel
- DT Swiss XRC 1200 Spline
- Axle dimension: 12x148 mm
- Rotor mount: Center Lock
- Inner width: 30 mm
- Weight: 799 g
Tyre
- Maxxis Ikon Exo 2.35"
- Width: 2.35"
- Weight: 740 g
Thru Axle
- Canyon GP0415-04 Thru Axle 148X12
- Axle dimension: 12x148 mm

Cockpit

Cockpit
- Canyon CP0008 CF
- Light, stiff one-piece carbon cockpit designed with Canyon’s pro riders for XC riding. Special shape allows ergonomic, comfortable grip near stem and aerodynamic position on straight, flat sections.
- Material: Carbon (CF)
- Weight: 325 g
Grips
- Ergon GA20

Seat

Saddle
- Selle Italia SLR KC Boost
- Gender: Unisex
- Max. Rider Weight: 100 kg
- Weight: 136 g
Seatpost
- Canyon S29 VCLS Seatpost
- Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing.
- Seatpost diameter: 30,9 mm
- Material: Carbon (CF)
- Weight: 200 g
Seat Clamp
- Canyon SC0001

Accessories

Pedals
- None included
Manuals and Accessories
- Canyon Organza Bag
Manuals and Accessories
- Canyon Assembly Paste
Manuals and Accessories
- Canyon Torque Wrench
Manuals and Accessories
- Canyon Shock Pump 300 Psi
Manuals and Accessories
- CAYN SMALL BOX 2.0

Content is loading

Geometry & dimensions

Basic geometry

Detailed geometry table

Body Height in cm	≤ 175	175 - 183	183 - 192	≥ 192
Seat Height in mm (a)	633 - 783	673 - 823	713 - 863	753 - 903
Seat Tube Length in mm (b)	425	465	505	545
Top Tube Length in mm (c)	576	599	623	649
Head Tube Length in mm (d)	90	100	115	140
Head Tube Angle (e)	70°	70°	70°	70°
Seat Tube Angle (f)	74,5°	74,5°	74,5°	74,5°
Chainstay Length in mm (g)	435	435	435	435
Wheel Base in mm (h)	1.102	1.126	1.151	1.179
Stack in mm (i)	582	591	605	629
Reach in mm (j)	415	435	455	475
Stand-over Height in mm (k)	786	789	796	811
Bottom Bracket Offset in mm (l)	38	38	38	38

Component geometry

Detailed geometry table

Spacer in mm	20,0	20,0	20,0	20,0
Cockpit Dimensions in mm	80-740	80-740	80-740	80-740
Crank Length in mm	170,0	175,0	175,0	175,0
Chainring Size	34	34	34	34
Seat Post Diameter in mm	30,9	30,9	30,9	30,9
Seat Post Length in mm	400	400	400	400
Maximum Seat Post Insertion Depth in mm	240	240	240	240
Minimum Seat Post Insertion Depth in mm	90	90	90	90
Wheel Size	29"	29"	29"	29"
Disc Size in mm	180 / 160	180 / 160	180 / 160	180 / 160
Front Fork Travel in mm	100	100	100	100
Rear Suspension Travel in mm	100	100	100	100
Fitting Length	210X55	210X55	210X55	210X55
